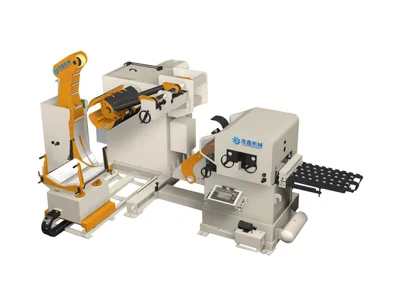

3 In 1 Medium Duty Decoiler Straightener Feeder For Punch Press Machine
Basic Attributes
- 型号 MXA4
- 型号 MXA4
- 型号 MXA4
- 卷料宽度 70-1300 mm
- 卷料宽度 70-1300 mm
- 卷料宽度 70-1300 mm
- 材料厚度范围 0.6-6.0 mm
- 材料厚度范围 0.6-6.0 mm
- 材料厚度范围 0.6-6.0 mm
- 卷料重量 12,000 kg
- 卷料重量 12,000 kg
- 卷料重量 12,000 kg
- 送料速度 16 m/min
- 送料速度 16 m/min
- 送料速度 16 m/min
- 送料精度 ±0.15/±0.2 mm
- 送料精度 ±0.15/±0.2 mm
- 送料精度 ±0.15/±0.2 mm
Models List
-
MXA4-400
-
MXA4-600
-
MXA4-800
-
MXA4-1000
-
MXA4-1300
Description
Features
- Combined uncoiler, straightener and feeder with ergonomic design, providing easier operation and better stability. Space saved with enhanced operation safety.
- Able to straighten types of material including hot rolled plate, cold rolled plate, pickled plate, stainless steel plate and aluminum alloy.
- 7 straightening rollers made of GCr15 with thermal treatment reaching hardness of HRC 56, also equipped with high standard grinding gears.
- Well-known brand servo system and other electrical devices to better ensure the stability and lifespan of the machine to lower the need of after-sales service.
- All standard models are able to fit all kinds of press, and customization is also available.
Straightening Capability
Feeding Speed Curve
Product Specification
| Item | MXA4-400 | MXA4-600 | MXA4-800 | MXA4-1000 |
|---|---|---|---|---|
| Material Width mm | 70-400 | 70-600 | 70-800 | 70-1000 |
| Material Thickness mm | 0.6-6.0 | 0.6-6.0 | 0.6-6.0 | 0.6-6.0 |
| Max. Material Weight kg | 5000 | 8000 | 8000 | 12000 |
| Coil Inner Diameter mm | 508 | 508 | 508 | 508 |
| Coil Outer Diameter mm | 1200 | 1200 | 1200 | 1200 |
| Straightening Capacity mm/m2 | ±1.5 | ±1.5 | ±1.5 | ±1.5 |
| Air Pressure MPa | 0.5 | 0.5 | 0.5 | 0.5 |
| Servo Motor kW | 5.5 | 7.5 | 7.5 | 11 |
| Material Rack Motor kW | 2.2 | 3.7 | 3.7 | 7.5 |
| Feeding Height mm | 1200 ± 100 | 1200 ± 100 | 1200 ± 100 | 1200 ± 100 |
| Standard Feeding Accuracy mm | ±0.15/±0.2 | ±0.15/±0.2 | ±0.15/±0.2 | ±0.15/±0.2 |
| Max. Feeding Speed m/min | 16 | 16 | 16 | 16 |
| Mandrel Expansion Range mm | 480-520 | 480-520 | 480-520 | 480-520 |
| Item | MXA4-1300 |
|---|---|
| Material Width mm | 70-1300 |
| Material Thickness mm | 0.6-6.0 |
| Max. Material Weight kg | 12000 |
| Coil Inner Diameter mm | 508 |
| Coil Outer Diameter mm | 1200 |
| Straightening Capacity mm/m2 | ±1.5 |
| Air Pressure MPa | 0.5 |
| Servo Motor kW | 11 |
| Material Rack Motor kW | 7.5 |
| Feeding Height mm | 1200 ± 100 |
| Standard Feeding Accuracy mm | ±0.15/±0.2 |
| Max. Feeding Speed m/min | 16 |
| Mandrel Expansion Range mm | 480-520 |
Product Advantages
Oil Cylinder

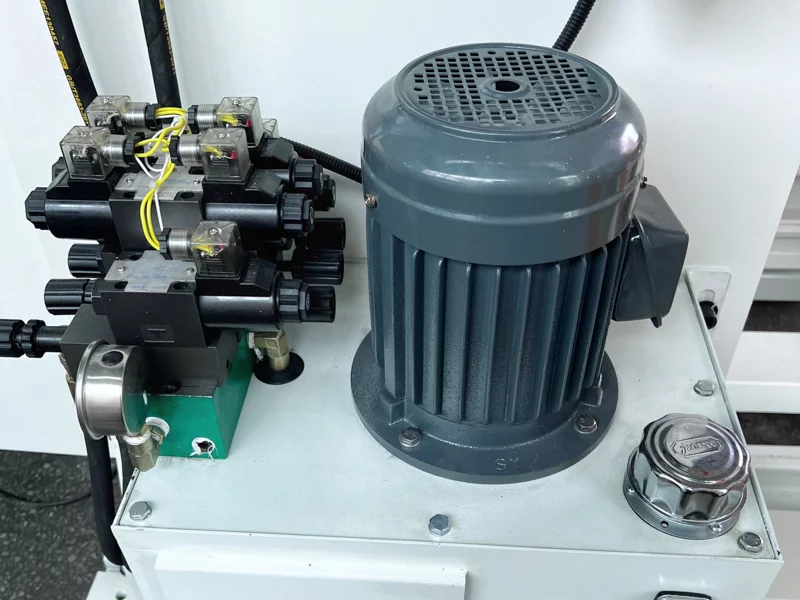

Hydraulic Station
Coil Car
Spacing Roller
YASKAWA Servomotor
Control Panel
Inlet Device

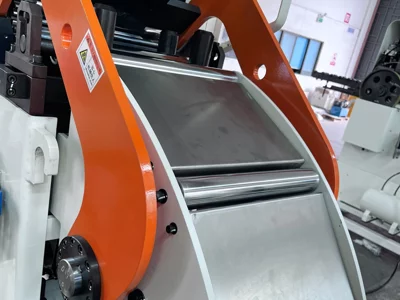

Support Rack
Position Device
