Space Saving Heavy Duty Decoiling Levelling Machine With High Wear Resistance Rollers
Basic Attributes
- 型号 SHL
- 型号 SHL
- 型号 SHL
- 卷料宽度 200-900 mm
- 卷料宽度 200-900 mm
- 卷料宽度 200-900 mm
- 材料厚度范围 0.5-4.5 mm
- 材料厚度范围 0.5-4.5 mm
- 材料厚度范围 0.5-4.5 mm
Models List
-
SHL200
-
SHL300
-
SHL400
-
SHL500
-
SHL600
-
SHL700
-
SHL800
-
SHL900
Description
Features
- Fine adjustment device is equipped for products requiring precision processing.
- High quality magnetic contactor and other electronic parts are installed for better lifespan and stability.
- Combining material rack and corrector for space saving. Production cost can be reduced by simplified feeding operation.
- High wear resistant rollers are made of solid bearing steel, strengthened by heat treatment with hard chrome plated.
- Suitable for continuous stamping processing of types of hardware, electronics, electrical appliances, toys, auto parts, etc.
Layout
Product Specification
| Item | SHL200 | SHL300 | SHL400 | SHL500 |
|---|---|---|---|---|
| Material Width mm | 200 | 300 | 400 | 500 |
| Material Thickness mm | 0.5-4.5 | 0.5-4.5 | 0.5-4.5 | 0.5-4.5 |
| Coil Inner Diameter mm | 450-530 | 450-530 | 450-530 | 450-530 |
| Coil Outer Diameter mm | 1400 | 1400 | 1400 | 1400 |
| Motor HP | 3 | 3 | 5 | 5 |
| Item | SHL600 | SHL700 | SHL800 | SHL900 |
|---|---|---|---|---|
| Material Width mm | 600 | 700 | 800 | 900 |
| Material Thickness mm | 0.5-4.5 | 0.5-4.5 | 0.5-4.5 | 0.5-4.5 |
| Coil Inner Diameter mm | 450-530 | 450-530 | 450-530 | 450-530 |
| Coil Outer Diameter mm | 1400 | 1400 | 1400 | 1400 |
| Motor HP | 5 | 7.5 | 7.5 | 10 |
Product Advantages

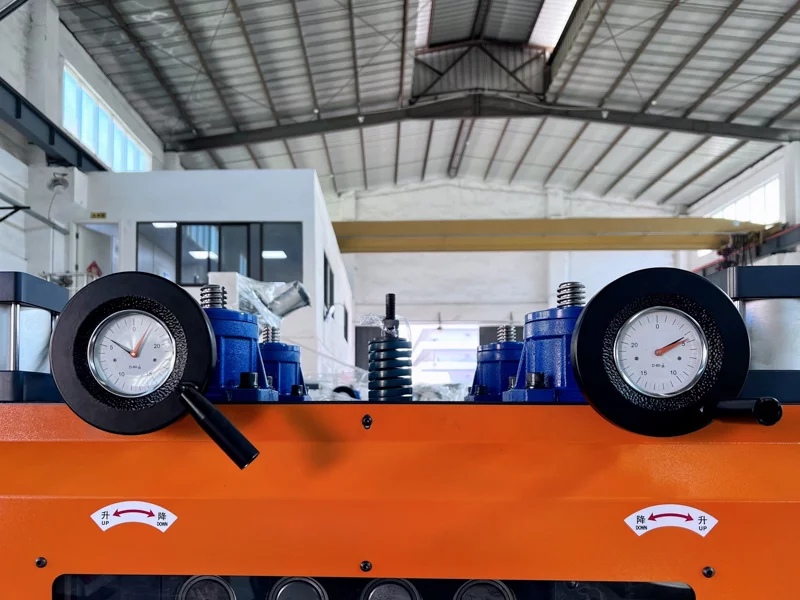

Straightening Roller Adjustment
Press Arm
Press Arm on GO Straightening Machine With Uncoiler
Coil Inlet
Coil Inlet on GO Straightening Machine With Uncoiler
Expanding Shaft
Expanding Shaft on GO Straightening Machine With Uncoiler
