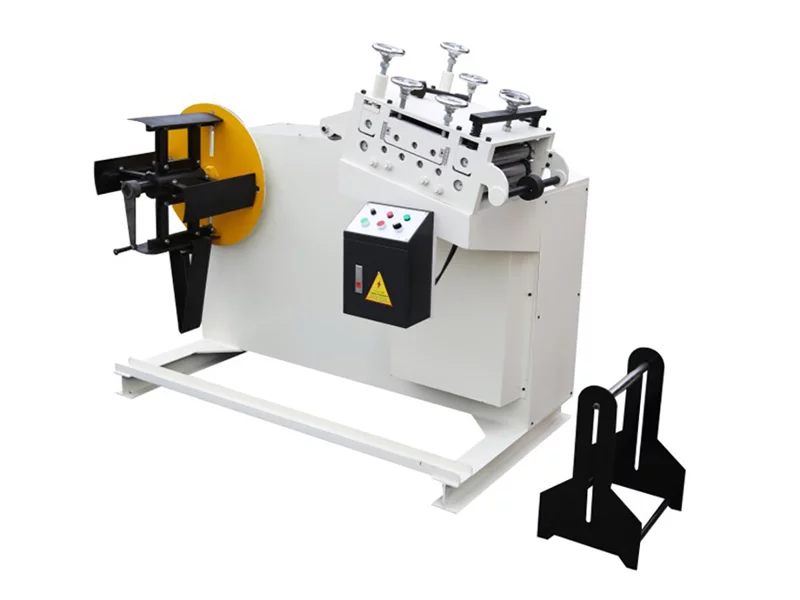

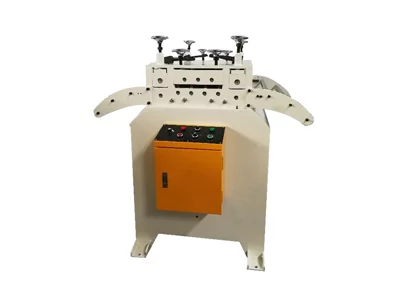

Classic Go Straightening Machine With Uncoiler For Fine Precision Blanking Line
Basic Attributes
- 型号 GO
- 型号 GO
- 型号 GO
- 卷料宽度 200-600 mm
- 卷料宽度 200-600 mm
- 卷料宽度 200-600 mm
- 材料厚度范围 0.3-3.5 mm
- 材料厚度范围 0.3-3.5 mm
- 材料厚度范围 0.3-3.5 mm
- 卷料重量 3,000 kg
- 卷料重量 3,000 kg
- 卷料重量 3,000 kg
- 送料速度 15 m/min
- 送料速度 15 m/min
- 送料速度 15 m/min
Models List
-
GO-200
-
GO-300
-
GO-400
-
GO-500
-
GO-600
Description
Features
- Mainly used for metal material coil, combining material rack and straightener for space saving. Production cost can be reduced by simplified feeding operation.
- Usually equipped with NC servo feeder ensuring the material plate is flat as required before feeding into the press mold.
- High quality magnetic contactor and other electronic parts are installed for better lifespan and stability.
- High wear resistant rollers are made of solid bearing steel, strengthened by heat treatment with hard chrome plated.
- Suitable for continuous stamping processing of types of hardware, electronics, electrical appliances, toys, auto parts, etc.
- Customization is also available, including press arm, hydraulic distension and frequency inverter.
Product Specification
| Item | GO-200 | GO-300 | GO-400 | GO-500 |
|---|---|---|---|---|
| Material Width mm | 200 | 300 | 400 | 500 |
| Material Thickness mm | 0.3-3.5 | 0.3-3.5 | 0.3-3.5 | 0.3-3.5 |
| Material Weight kg | 800 | 800 | 2000 | 3000 |
| Coil Inner Diameter mm | 450-530 | 450-530 | 450-530 | 450-530 |
| Coil Outer Diameter mm | 1200 | 1200 | 1200 | 1200 |
| Feeding Speed m/min | 15 | 15 | 15 | 15 |
| Motor HP | 2 | 2 | 3 | 3 |
| Machine Weight kg | 1000 | 1100 | 1200 | 1400 |
| Item | GO-600 |
|---|---|
| Material Width mm | 600 |
| Material Thickness mm | 0.3-3.5 |
| Material Weight kg | 3000 |
| Coil Inner Diameter mm | 450-530 |
| Coil Outer Diameter mm | 1200 |
| Feeding Speed m/min | 15 |
| Motor HP | 3 |
| Machine Weight kg | 1600 |
Product Advantages

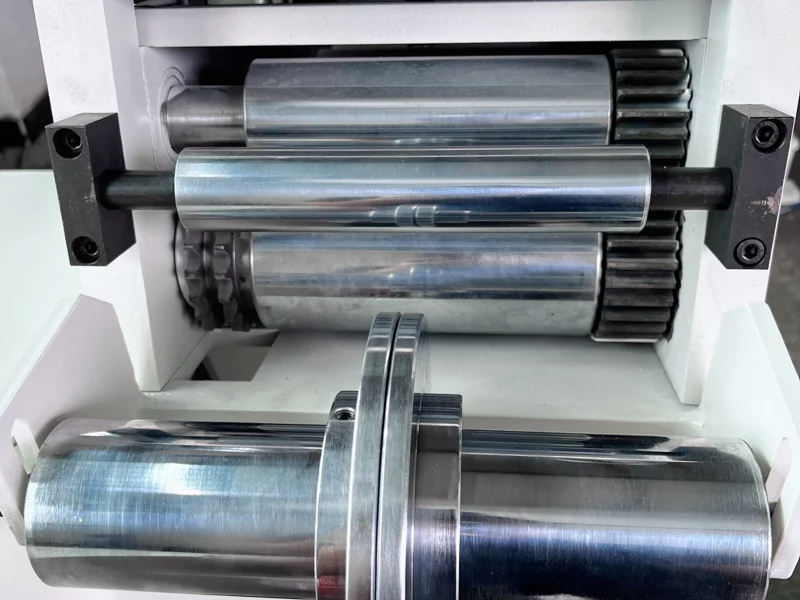

Straightening Rollers
Straightening Rollers on GO Straightening Machine With Uncoiler

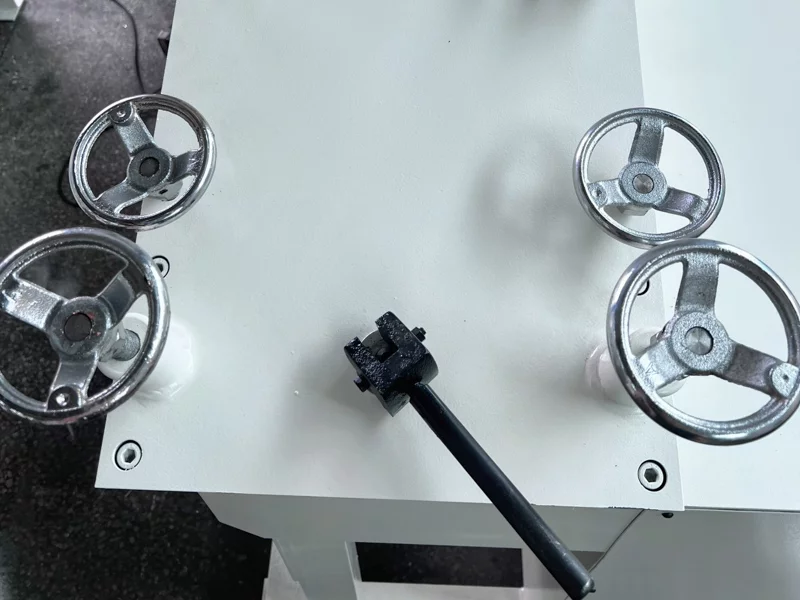

Adjustment Wheel
Adjustment Wheel on GO Straightening Machine With Uncoiler

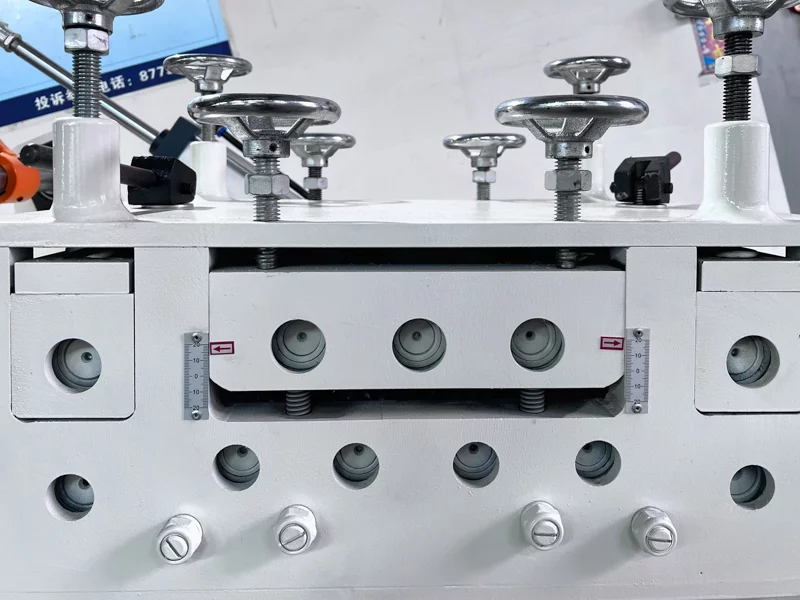

Coil Inlet
Coil Inlet on GO Straightening Machine With Uncoiler

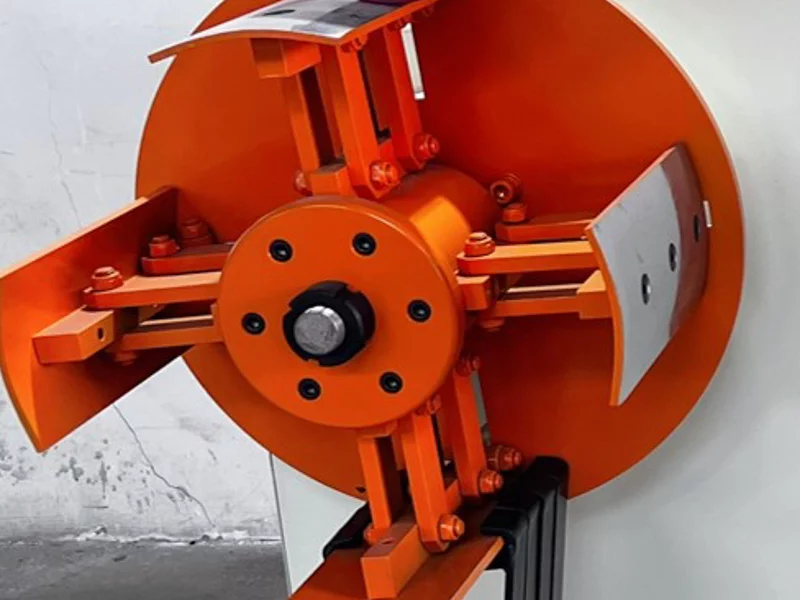

Expanding Shaft
Expanding Shaft on GO Straightening Machine With Uncoiler

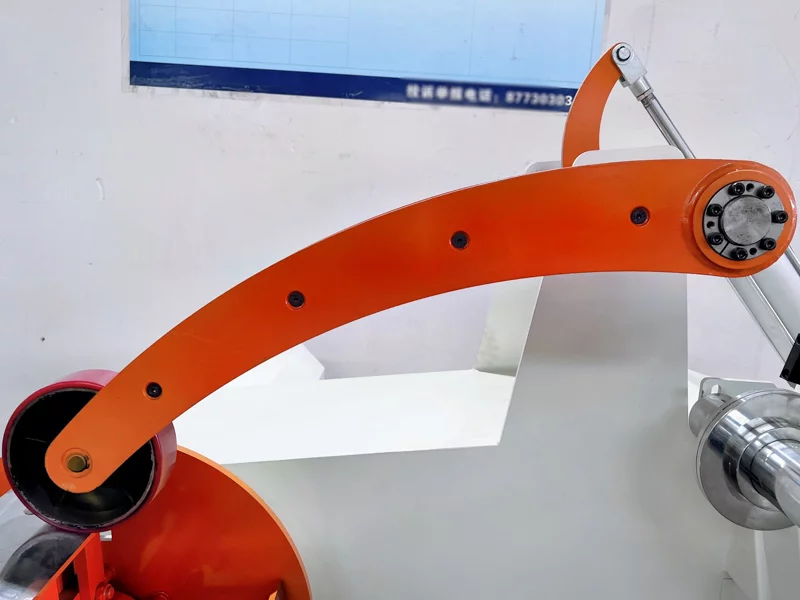

Press Arm
Press Arm on GO Straightening Machine With Uncoiler
